Saturday, 16 July 2022

BGiri STM32 Weighing Board

BGiri STM32 LQFP 48 PIN.

Mainstream Value-Line Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, 2-3.6V.

One Board Multiple Applications  !

Displays  Compitable  : Seven Segment.  LCD Graphics Displays  , HMI,  Touch Screen Display.

Keypad 6 keys in Weighing 30 Keys in PRC Applications.

Applications  : Weighing Scales and 4 Tone Four Load Cell Platform.

Feathers  : PRC ( Piece , Price Computing , Total Weight, Total Price , Liter , KG , Pound .

Reading :  Three Set Points.

Wireless, Printer, Data Transfer.
Fast , Trustable , Reliable , Best Performance in Industry Compared with Other Microcontroller.

100 % Stability in Measure The Perfect Accuracy Value in Measurement  !

STM32 Made in USA and BGiri Developed in India.

I Am Greatful , Thankful Entire Team of Development . I am Really Very Happy To Serve BGiri STM32 Weighing Board in World wide Weighing Industry  !

Aashok Giri Goswami

Indian Balances Industry
Indian Automotive Industry
BGiri Balance Industry

WhatsApp Number.00919004256214.

Monday, 18 April 2022

BGiri Candy SS304

BGiri Candy.
Size : PAN Size 143 × 190 MM
Base Plate 2 MM 184 × 244 MM.
 6 Volt .
1.2 MM Thickness SS 304 Body  1 MM Thickness SS 304 , Rubber Legs M8 , 80 or 135 MM Alluminioum Load Cell , Alluminioum Casting Cross,  Double Bobin Copper Transformers, Lithium Ion Battery or Lead Acid Battery,  BGiri WT Card , Front Back Displays, 3 PIN PC Cable, Switch, Fuse Combo Inbuilt. Weight Capacity 10 to 30 KG .

BGiri Candy

BGiri Candy.
Size : PAN Size 143 × 190 MM
Base Plate 2 MM 184 × 244 MM.
 6 Volt .
1.2 MM Thickness MS Body  1 MM Thickness SS 304 , Rubber Legs M8 , 80 or 135 MM Alluminioum Load Cell , Alluminioum Casting Cross,  Double Bobin Copper Transformers, Lithium Ion Battery or Lead Acid Battery,  BGiri WT Card , Front Back Displays, 3 PIN PC Cable, Switch, Fuse Combo Inbuilt. Weight Capacity 10 to 30 KG .

Friday, 28 January 2022

Happy New Year's 2022

May This New Year's Brings New Happiness, New Goals , New Dream New Target , New Plan , New Business Ideas !

New Achievements and Many New Inspirations to Your lifestyles.
Wishing You a Year's Fully Loaded with Happiness , Love ,Smiling On Your Face  !

#StaySafe
#HappyNewYear
#HappyNewYear2022.
#BGiri

With Love, Regards, Respect, Happiness  !

Your Loving,

AashokKumar Goswami
Ashok Kumar Goswami
Aashok Giri Goswami

8 Bit vs 32 Microcontroller

8-bit vs 32-bit MCB: Microcontroller Basics
Strictly speaking, an 8 bit microcontroller processes 8-bits of data at any particular time. The number of bits used by an MCU (sometimes called bit depth or data width) tells you the size of the registers (8 bits per register), number of memory addresses (only 2^8 = 256 addresses), and the largest numbers they can process (again, 2^8 = 256 integers, or integers 0 through 255). An 8-bit microcontroller has limited addressing, but some 8-bit microcontrollers use paging, where the contents of a page register determines which onboard memory bank to use.

A 32-bit microcontroller can theoretically handle numbers reaching 2^32. They have 32-bit arithmetic logic units, registers, and bus width. In general, this means that a 32-bit can handle quadruple the amount of data, making it technically more data efficient. However, there are other differences between 8-bit and 32-bit microcontrollers that span beyond arithmetic operations.

32-bit Microcontroller Applications

There are plenty of applications for a 32-bit microcontroller, but this should be a discussion regarding when not to use a 32-bit microcontroller. In general, any application that requires computations that inevitably involve large numbers and that must be calculated faster should use a 16-bit or 32-bit microcontroller. Some example operations include FFT calculations, image processing, high quality audio or video, and edge computing applications. Some memory and processing intensive tasks involving machine learning or AI are better implemented with something more powerful, such as an ARM MCU or a single-board computer.

If you need to gather measurements of analog signals, a 32-bit microcontroller is not necessarily better than an 8-bit microcontroller. The bit depth quoted for a microcontroller is not equivalent to the bit depth of the built-in analog-to-digital converter (ADC). Commercially available microcontrollers will include an onboard ADC that reaches 8 bit, 10 bit, 12 bit, or 16-bit rates.

For mobile applications, a 32-bit microcontroller will provide more intense computation at the expense of higher power consumption. It's possible to use a 32-bit microcontroller to finish important computations faster and then put the CPU in sleep mode for a longer period of time. However, this does not mean a 32-bit microcontroller is more power efficient. An 8-bit microcontroller will generally provide longer battery life and have a better balance of peripheral features than similar 32-bit devices.

Choose the Best MCU for Your PCB Design
To choose the best microcontroller for your PCB design while minimizing time and overall cost, it is necessary to carefully assess the key advantages and disadvantages of 8-bit vs 32-bit mcu. By taking design requirements like speed, complexity, peripherals, and flash memory into consideration, you can minimize decision paralysis as well as potential setbacks when choosing the best microcontroller for your design.

When you need to access an easy-to-use PCB layout tool that includes everything needed to build high-quality manufacturable circuit boards, look no further than CircuitMaker. In addition to easy-to-use PCB design software, all CircuitMaker users have access to a personal workspace on the platform.

Indian Balances Industry
BGiri Balance Industry

Ashok Kumar Goswami
WhatsApp 00919004256214 .

Sunday, 26 December 2021

You Tube Channel

We are at BGiri Design, Development of Gurbar Data , Art Works of PCB Designed, Total Bill Of Materials of The Card , X File of Programming Data Sheet,  Operation Manual Datasheet, Displays 0.56 / 0.8 Size PCB Development,  Paper or Glass Coating.
First Stage of Development Only IC Programming Given .
After Confirmation of Value of Software then Handover Software File to Party.
After Service Support Provided By The BGiri Company .

1. Weighing Bridge IT Card Simple
2. Weighing Bridge IT Card with USB Port and SMS Facility
3. PRC Card
4. PRC with RS 232 Serial Port
5. Weighing Scales Card
6. Bluetooth Card
7. Android Mobile Applications
8. Displays PCB Designed with Own Logo
9. Any Customized Total Weitronics Solution Provider Company Since Last Year 1994.
10. Die Mould of ABS / MS / SS Body
11. License of Dealer and Manufacturer of Weight and Measure Department of India. ( All India Any state Government. 45 to 60 Day's)

Any Other Card Development Turn Key Job Also Developed As Per Card Samples.

Let's Start Business Together  ! Grow Together  !
Made in India  ! Indian Quality You Can Trust !

BGiri
BGiri Balances Industry
Indian Automotive Industry
Indian Weigh Bridge and Scales Industry.

Aashok Giri Goswami

WhatsApp Number.00919004256214

https://youtube.com/channel/UCmk6DG5breA2fNkijzOL4ug

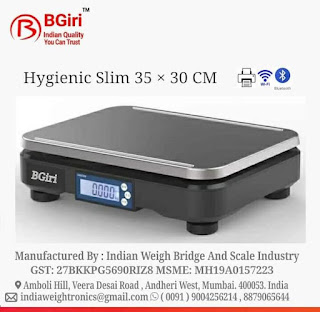

BGiri Hygienic 300 × 350 Scales Machines

 #BGiri

#WeighingIndustry

#HygienicSlim

#PharmaceuticalIndustry

#FisheriesIndustry

#CurrierIndustry

#CargoIndustry

#Airport

#GoldBar

#SilverBar

#Manufacturer

#Importer

#Exporter

#Trader

#WeighingScales


Model : BGiri Hygienic Slim

Weight Capacity 80 to 200 KG .( Customized  )

Alluminioum / BGri Make SS / Alloy Steel Load Cell.

5 MM MS / SS / Alluminioum Sheet Metal Plate ( 6 to 10 MM Thickness on Requests Only )

BGiri STM 32 RS 232 ,Wifi / Bluetooth/ Printer / USB .

Top SS 1.6 MM.

Metal MS / SS / Alluminioum Adjustable Share Beam Legs.

Applications Industry  : Pharmaceutical, Fisheries, Currier/ Cargo.

0.56 / 0.8 / 1 Inch Display Red / Green / Blue or TFT / LCD Alfa Numeric.

Lithium Iron Battery. 3 to 4 Days Back Up.

3 PIN PC Power Code ( 14 / 36 Pure Copper Wire ) Socket with On / Off Switch. ( Inbuilt 3 PIN Socket ,Fuse with Switch Combo )


Made in India  !

We Measure Perfect Accuracy Value  !


Manufactured By,

Indian Automotive Industry

Indian Weigh Bridge & Scales Industry

Amboli Hill, Veera Desai Road, Andheri  West, Mumbai. 400053. India.

Asian Pacific Countries.








  1. Manufacturering System Laser Cutting, CNC Bending, Mondier Drilling, TIG Welding, Powder Coating For MS , Chemical Treatment For SS / SS 316 L Cirtificate,  Iodized Alluminioum.

BGiri WT Weighing Scales Card Customized Development

 #BGiri

#STM32

#Weighing

#Precision

#Weigh

#Solutions

#BGiri

#EmbeddedSystems

#Developer


Advance Motherboards PCB Card  Board For Weighing Industry !


#BGiri Smart Advance WT 2021 use the Precision Weigh Scale solution from Analog Devices(I-NUCLEO-CN0216) to test, develop and prototype on the STM32F411 MCU using the NUCLEO-F411.


I-NUCLEO-CN0216 is a system for precision weigh scale signal conditioning that can be used in conjunction with a STM32F411, to create a complete precision weigh scale. The signal conditioning system uses the AD7791, a low-power buffered 24-bit sigma-delta ADC along with two external ADA4528-1 zero-drift amplifiers.

This solution provides a high DC gain with a single supply. Ultra-low noise, low-offset voltage, and low-drift amplifiers are used to amplify the low-level signal from the load cell. The circuit yields 15.3-bit, noise-free code resolution for a load cell with a full-scale output of 10 mV.

This solution allows a great flexibility in designing a custom low-level signal conditioning analog front end. It gives the user the ability to easily optimize the overall transfer function of the combined sensor-amplifier-converter circuit. The AD7791 maintains a good performance over the complete output data range (from 9.5Hz to 120Hz), which allows it to be used for weigh-scale applications operating at various low speeds.


#Features


High gain of 400 using zero-drift amplifier

Typical connection to weigh scales with low-output signals

Performance metrics maintained through120 Hz

24-bit sigma-delta ADC provides for precision weigh scale (tiny-weight changes)

Low power and low noise


#DisplaysSupport


LCD , TFT Touch Screen, Bluetooth, Wi Fi , Thermal Printer, Multiple Digital Load Cell Support , Control Fŕom Anywhere in world !


#Development Video After Struggling Hard Working  ! Thanks Lot Entire BGiri Development Team ! Without Your Support Can't Possible Things which Make it Possible  !


Commercials Terms and Conditions of The Business.

Indian Automotive Industry

Indian Weigh Bridge and Scales Industry.

WhatsApp Number.

00919004256214 , 00918879065644.

Email: indiaweightronics@gmail.com


Made in india .

Indian Quality You Can Trust  !


BGiri Weighing Scales Card Development Customized

 #BGiri

#STM32

#Weighing

#Precision

#Weigh

#Solutions

#BGiri

#EmbeddedSystems

#Developer


Advance Motherboards PCB Card  Board For Weighing Industry !


#BGiri Smart Advance WT 2021 use the Precision Weigh Scale solution from Analog Devices(I-NUCLEO-CN0216) to test, develop and prototype on the STM32F411 MCU using the NUCLEO-F411.


I-NUCLEO-CN0216 is a system for precision weigh scale signal conditioning that can be used in conjunction with a STM32F411, to create a complete precision weigh scale. The signal conditioning system uses the AD7791, a low-power buffered 24-bit sigma-delta ADC along with two external ADA4528-1 zero-drift amplifiers.

This solution provides a high DC gain with a single supply. Ultra-low noise, low-offset voltage, and low-drift amplifiers are used to amplify the low-level signal from the load cell. The circuit yields 15.3-bit, noise-free code resolution for a load cell with a full-scale output of 10 mV.

This solution allows a great flexibility in designing a custom low-level signal conditioning analog front end. It gives the user the ability to easily optimize the overall transfer function of the combined sensor-amplifier-converter circuit. The AD7791 maintains a good performance over the complete output data range (from 9.5Hz to 120Hz), which allows it to be used for weigh-scale applications operating at various low speeds.


#Features


High gain of 400 using zero-drift amplifier

Typical connection to weigh scales with low-output signals

Performance metrics maintained through120 Hz

24-bit sigma-delta ADC provides for precision weigh scale (tiny-weight changes)

Low power and low noise


#DisplaysSupport


LCD , TFT Touch Screen, Bluetooth, Wi Fi , Thermal Printer, Multiple Digital Load Cell Support , Control Fŕom Anywhere in world !


#Development Video After Struggling Hard Working  ! Thanks Lot Entire BGiri Development Team ! Without Your Support Can't Possible Things which Make it Possible  !


Commercials Terms and Conditions of The Business.

Indian Automotive Industry

Indian Weigh Bridge and Scales Industry.

WhatsApp Number.

00919004256214 , 00918879065644.

Email: indiaweightronics@gmail.com


Made in india .

Indian Quality You Can Trust  !


BGiri WT 2020 Weighing Scales Card

 #BGiri

#STM32

#Weighing

#Precision

#Weigh

#Solutions



#BGiri

#EmbeddedSystems

#Developer


Advance Motherboards PCB Card  Board For Weighing Industry !


#BGiri Smart Advance WT 2021 use the Precision Weigh Scale solution from Analog Devices(I-NUCLEO-CN0216) to test, develop and prototype on the STM32F411 MCU using the NUCLEO-F411.


I-NUCLEO-CN0216 is a system for precision weigh scale signal conditioning that can be used in conjunction with a STM32F411, to create a complete precision weigh scale. The signal conditioning system uses the AD7791, a low-power buffered 24-bit sigma-delta ADC along with two external ADA4528-1 zero-drift amplifiers.

This solution provides a high DC gain with a single supply. Ultra-low noise, low-offset voltage, and low-drift amplifiers are used to amplify the low-level signal from the load cell. The circuit yields 15.3-bit, noise-free code resolution for a load cell with a full-scale output of 10 mV.

This solution allows a great flexibility in designing a custom low-level signal conditioning analog front end. It gives the user the ability to easily optimize the overall transfer function of the combined sensor-amplifier-converter circuit. The AD7791 maintains a good performance over the complete output data range (from 9.5Hz to 120Hz), which allows it to be used for weigh-scale applications operating at various low speeds.


#Features


High gain of 400 using zero-drift amplifier

Typical connection to weigh scales with low-output signals

Performance metrics maintained through120 Hz

24-bit sigma-delta ADC provides for precision weigh scale (tiny-weight changes)

Low power and low noise


#DisplaysSupport


LCD , TFT Touch Screen, Bluetooth, Wi Fi , Thermal Printer, Multiple Digital Load Cell Support , Control Fŕom Anywhere in world !


#Development Video After Struggling Hard Working  ! Thanks Lot Entire BGiri Development Team ! Without Your Support Can't Possible Things which Make it Possible  !


Commercials Terms and Conditions of The Business.

Indian Automotive Industry

Indian Weigh Bridge and Scales Industry.

WhatsApp Number.

00919004256214 , 00918879065644.

Email: indiaweightronics@gmail.com


Made in india .

Indian Quality You Can Trust  !

BGiri Make Four Load Cell Floor Scale

 #BGiri

#BGiriWeitronics

#FloorScales

#PharmaIndustry

#SteelIndustry

#FourLoadCell

#IndustrialScales

#SSBody

#MSSteelBody

#BGiriWT2020

#BGiriLoadCell

#ShareBearm

#SSIndicator

#SSJunctionsB


Wireless Four Load Cell Floors Scales.


Available Size are As Follow.


1 × 1 MT , 1.5 × 1.5 MT , 2 × 2 MT.

3 × 3 MT , 5 × 5 MT.


Attractive Main Technical Specifications with Feathers.


Powered By " BGiri 2020 WT "  Motherboards ( Microcontroller STM32 )

5 MM Thickness SS ( 202 , 204 , 316 , With L  Cirtificate ) , MS , Alluminioum Sheet , Channel Base , CNC Laser Welding, Bending and Cutting.

Sharebeam Load Cell Options Like Alluminioum, Alloy , SS Metal, Require Junction Box.

Weight Capacity  2 , 4 , 6 , 8 , 10 Tone .

LCD Display  , TFT Touch Screen Display,  LED Segment Displays.

Wi Fi Remote Displays , Thermal Printer, USB.

Wireless Weighing Indicator SS Body IP65  Standards.


We Measure The Perfect Accuracy Value  !


Made in India !


Indian Quality You Can Trust  !


Manufacturer By

Indian Balances Industry.

Email  indiaweightronics@gmail.com

WhatsApp Number.00919004256214.


Shipping Around The Global World.


#IndianBalancesIndustry


WhatsApp https://wa.me/c/919004256214









BGiri Hygienic Floor Scale



#BGiri
#BGiriWeitronics
#FloorScales
#PharmaIndustry
#SteelIndustry
#FourLoadCell
#IndustrialScales
#SSBody
#MSSteelBody
#BGiriWT2020
#BGiriLoadCell
#ShareBearm
#SSIndicator

BGiri Wireless Industrial Hygienic

Available Size are As Follow.

400 × 500  , 500 × 600  , 600 × 700 ( Dimensions in MM )

Attractive Main Technical Specifications with Feathers.

Powered By " BGiri 2020 WT "  Motherboards ( Microcontroller STM32 )
5 MM Thickness Plate SS ( 202 , 204 , 316 , With L Cirtificate ) , MS , Alluminioum Sheet , Channel Base , CNC Laser Welding, Bending and Cutting.
Load Cell Options Like Alluminioum, Alloy , SS Metal, Require Junction Box.
Weight Capacity  50 to 1 Tones Capacity.
LCD Display  ,TFT Touch Screen Display,  LED Segment Displays.
Wi Fi Remote Displays , Thermal Printer, USB.
Wireless Weighing Indicator SS Body IP65  Standards.

We Measure The Perfect Accuracy Value  !

Made in India !

Indian Quality You Can Trust  !

Manufacturer By
Indian Balances Industry.
Email  indiaweightronics@gmail.com
WhatsApp Number.00919004256214.

Shipping Around The Global World.

#IndianBalancesIndustry

WhatsApp https://wa.me/c/919004256214

Merry Christmas

 #Christmas

#Merrychristmas

#Merry

#Smile

#Celebration

#Life

#Self

#Innerself

#Love

#Moments

#BGiri


Wishing You Very Happy Christmas To All Dear Friends Around The Global Family  Members  ! With Love Regards.  Please Forgive My Mistakes By Known or Without Any Knowledge Hurting Someone  !

With Regards,

Indian Balances Industry

BGiri STM32 Weighing Board

BGiri STM32 LQFP 48 PIN.  Mainstream Value-Line Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timer...
